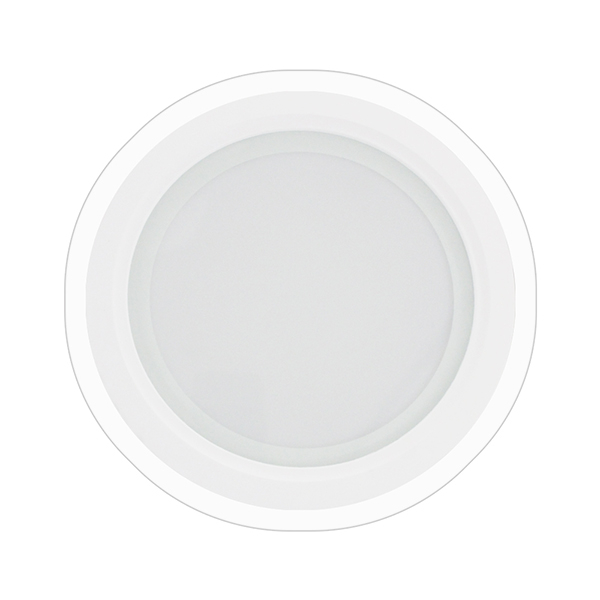

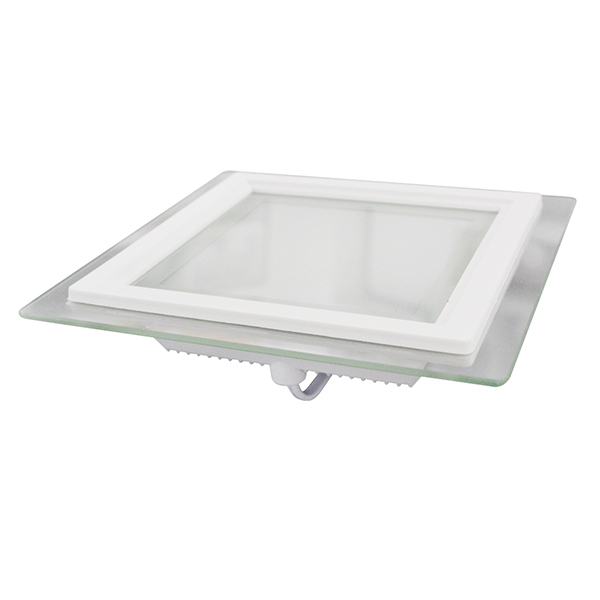

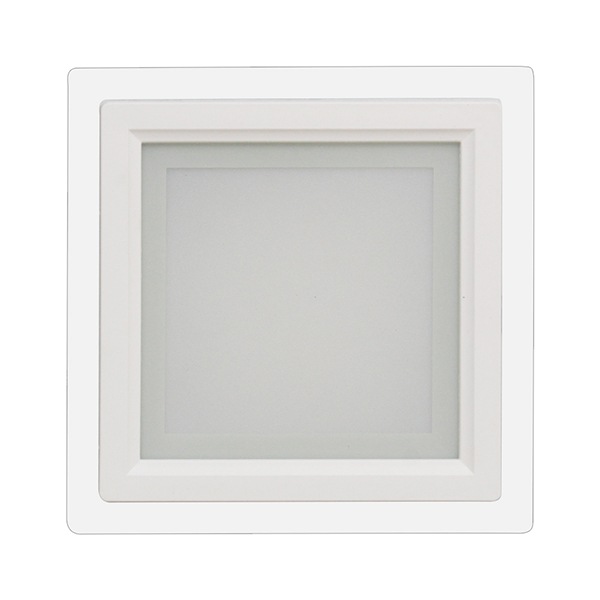

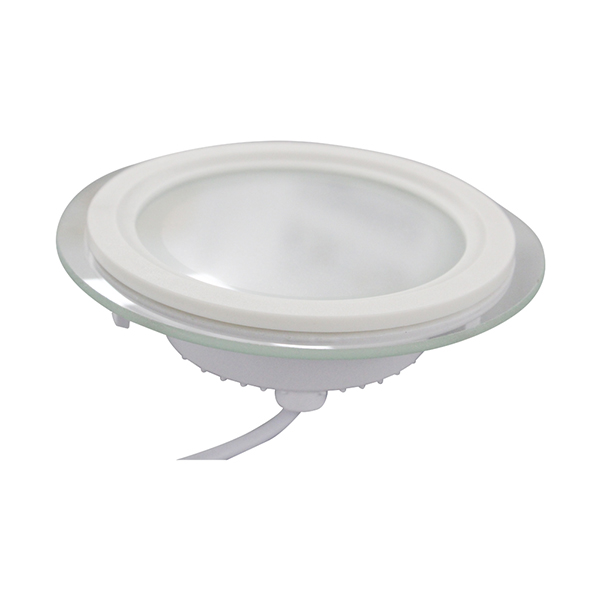

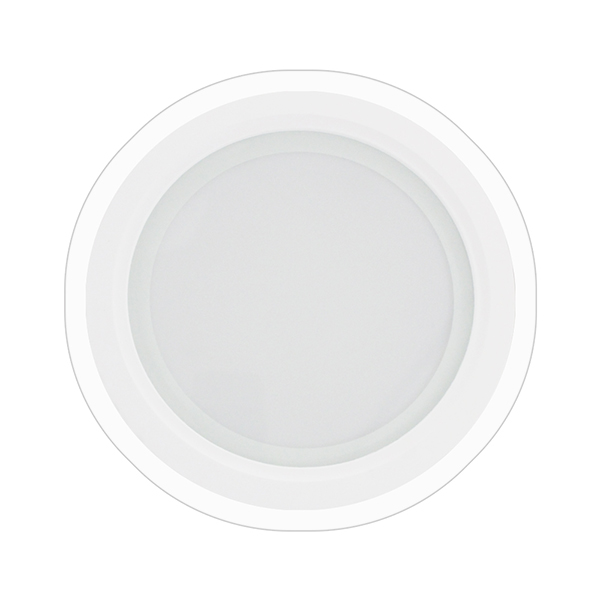

CM-DL03
Material: Glass
Input voltage: 85-265V
Color temperature: 2700-6500K
Beam angle: 100°
Lifetime: 30,000H
| MODEL | WATTAGE | LUMENS | DIMENSION | CUT-OUT SIZE | CRI | PF |
| CM-DL03A | 6W | 540LM | Φ100MM | Φ75MM | >80 | >0.5/0.9 |
| CM-DL03A | 12W | 1100LM | Φ160MM | Φ125MM | >80 | >0.5/0.9 |
| CM-DL03A | 18W | 1650LM | Φ200MM | Φ165MM | >80 | >0.5/0.9 |
| CM-DL03B | 6W | 540LM | 100*100MM | 75*75MM | >80 | >0.5/0.9 |
| CM-DL03B | 12W | 1100LM | 160*160MM | 125*125MM | >80 | >0.5/0.9 |
| CM-DL03B | 18W | 1650LM | 200*200MM | 165*165MM | >80 | >0.5/0.9 |
Material: Glass
Input voltage: 85-265V
Color temperature: 2700-6500K
Beam angle: 100°
Lifetime: 30,000H
| MODEL | WATTAGE | LUMENS | DIMENSION | CUT-OUT SIZE | CRI | PF |
| CM-DL03A | 6W | 540LM | Φ100MM | Φ75MM | >80 | >0.5/0.9 |
| CM-DL03A | 12W | 1100LM | Φ160MM | Φ125MM | >80 | >0.5/0.9 |
| CM-DL03A | 18W | 1650LM | Φ200MM | Φ165MM | >80 | >0.5/0.9 |
| CM-DL03B | 6W | 540LM | 100*100MM | 75*75MM | >80 | >0.5/0.9 |
| CM-DL03B | 12W | 1100LM | 160*160MM | 125*125MM | >80 | >0.5/0.9 |
| CM-DL03B | 18W | 1650LM | 200*200MM | 165*165MM | >80 | >0.5/0.9 |
